Real time messaging Protocol was a communication protocol for streaming audio, video and data over the internet with low-latency.

RTMP Chunk Stream

Chunk Format

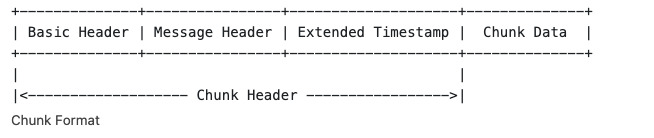

Each chunk consists of a header and data. The header itself has three parts: chunk-format

packet

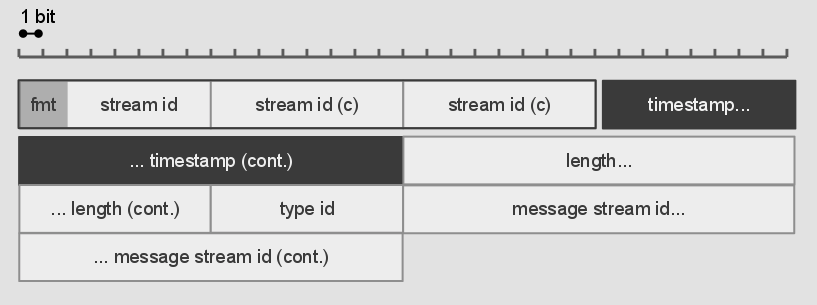

Basic Header: 1. fmt (2 bits) chunk type 4 types 2. Chunk stream ID (1 -3 bytes) support up to 65535+64 streams

Chunk Message Header depends on the fmt of basic header.

* timestamp delta (3 bytes) difference between the previous chunk's timestamp and the current trunk's timestamp
* message length (3 bytes) length of the message
* message type id (1 byte) type of the message
* message stream id (4 bytes) chunk stream reuse to send new message stream.
* extended timestamp (4 bytes) only used when timestamp can not fit into the 24 bits field.

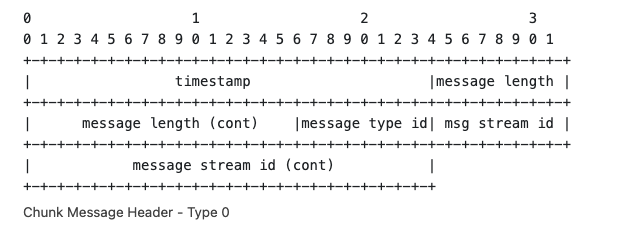

type 0 chunk headers are 11 bytes long. This type MUST be used at the start of a chunk stream, and whenever the stream timestamp goes backward. type0

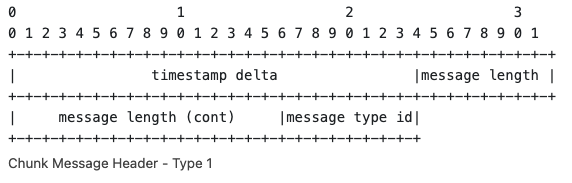

type 1 chunk headers are 7 bytes long. The message stream ID is not included; this chunk takes the same stream ID as the preceding chunk.

type1

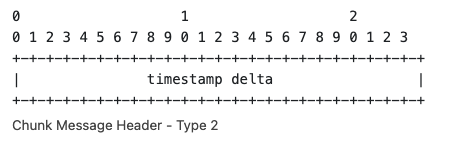

type 2 chunk headers are 3 byte long. Neither the stream id nor the message length is included. this chunk has the same stream ID and message length as the preceding chunk.

type2

type 3 chunks has no message header. chunks of this type take values from preceding chunk for the same Chunk Stream ID.

Protocol Control Messages

protocol control messages must have message stream ID 0 (control stream) and be sent in the chunk stream id 2. The message Type ID byte defines whether the packet contains audio/video data, a remote object or a command.

  1. Set Chunk Size 1
  2. Abort message 2
  3. Acknowledgement 3
  4. window ack size 5
  5. set bandwidth 6

User Control Messages

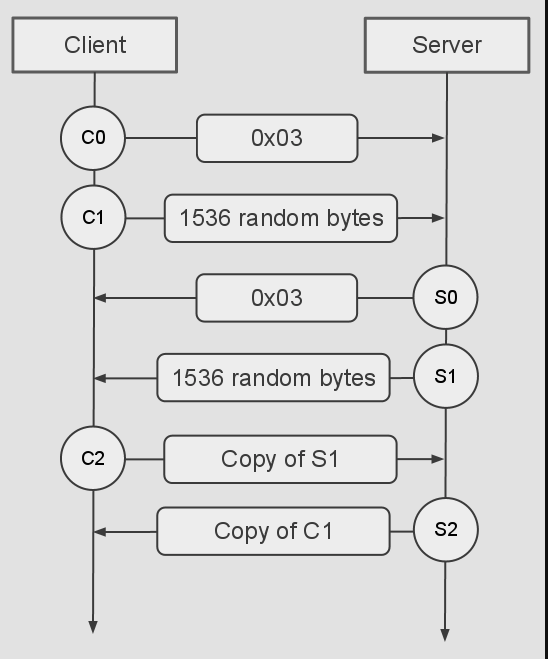

HandShake

C0 version
C1 time as epoch C2 nearly same as C1

handshake

RTMP Message

RTMP messages transferred between entities on a network using a lower level transport layer, such as RTMP Chunk stream.

While RTMP was designed to work with RTMP Chunk Stream, it can send the message using any other transport protocol.
