本文介绍常见网络协议的报文

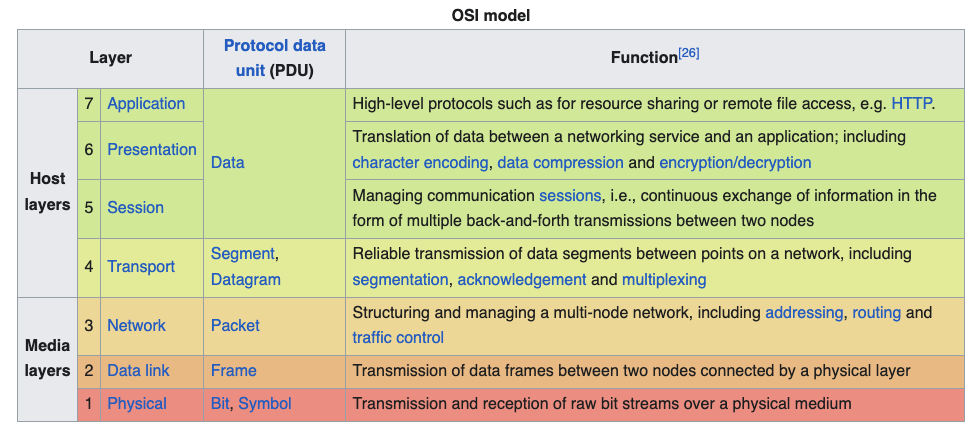

OSI model

The open System interconnection model is a conceptual framework that divides network communication functions into seven layers.

IP

Internet Protocol packet structure is used for data transmission in computer networks

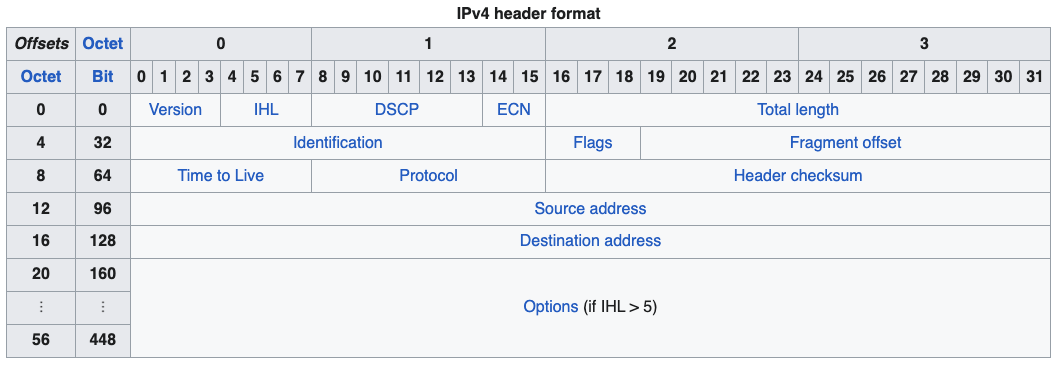

IP packet fields:

• Version(4 bits)
• IHL internet header length (4 bits) HE-LEN-bytes = number * 4
• type of service (8 bits)
• total length (16 bits) total length of ip packet from minimum 20 bytes to maximum 65535 bytes
• identification if the ip package is fragmented then each fragmented packet will use the same 16 bit identification number to identify to which IP packet they belong to
• IP flags(3 bits)
  1. always 0
  2. don’t fragment bit
  3. more fragment bit set on all fragmented packets except for the last one.
• fragment offset (13 bits) specify the position of the fragment in the original fragmented ip packet. all fragment length must be multiply of 8
• time-to0live(8 bits) everytime an ip packet passes through a router, this field is decremented by 1. once it hits 0 , the router will drop the packet and sends an icmp exceeded message to sender.
• protocol(8 bits) which protocol is encapsulated in the IP packet tcp 6 udp 17
• header checksum (16 bits) header checksum
• source address(32 bits)
• destination address (32 bits)
• ip option variable length

TCP

Transmission Control Protocol is a communications standard that enables application programs and computing devices to exchange message over a network. It is designed to send packets across the internet and ensure the successful delivery of data and messages over networks.

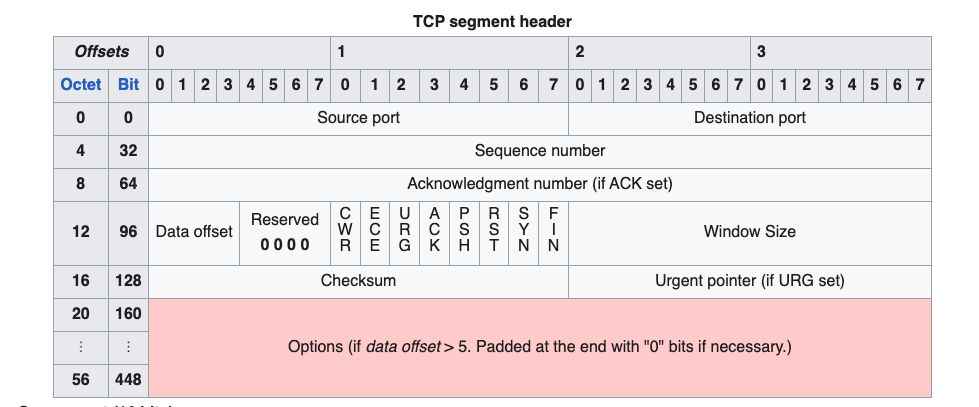

• Source Port (16 bits)
• Destination Port (16 bits)
• Sequence Number (32 bits) ensures the data is received in proper order by ordered segmenting and reassembling them at the receiving end.
• Acknowledgement Number (32 bits) if ACK flag is set then the value of this field is the next sequence number that the sander of ACK is expecting.
• Data offset (4 bits) specify the size of TCP header in 32-bit words.
• reserved(4 bits)
• flag(8 bits)
  1. congestion window reduced (CWR)
  2. ECN-Echo
  3. URG urgent pointer field
  4. ACK Acknowledgement field
  5. PSH Push function. Asks to push the buffered data to the receiving application.
  6. RST reset the connection.
  7. SYN Synchronize sequence numbers.
  8. FIN last packet from sender
• Window Size (16 bits) the size of the receive window, which specifies the number of window size units that the sender of this segment is currently willing to receive
• CheckSum(16 bits) error checking of tcp header
• Urgent pointer(16 bits) if the URG is set, then this field is an offset from the sequence number indicating the last urgent data byte.
• Options (Variable 0-320 bits, in units of 32 bits)
  1. maximum segment size (4 bytes)
  2. window scale (3 bytes)

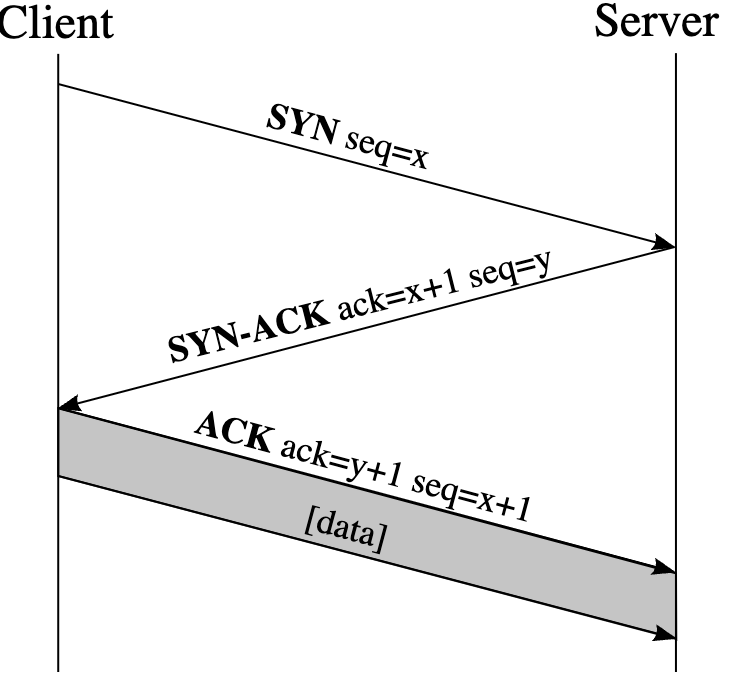

TCP connection

Conditions under which a TCP connection is terminated

TCP recovers from transient segment loss by retransmission while the connection remains in ESTABLISHED. Termination occurs only when (1) either endpoint completes an orderly or abortive close, or (2) the local TCP implementation determines that the peer is no longer reachable within its retransmission or keepalive policy.

A single discarded IP datagram is therefore not equivalent to connection failure. Connection failure is a transport-layer decision based on sustained non-acknowledgement, an explicit control segment (FIN / RST), or local/remote policy.

Recovery that preserves the connection

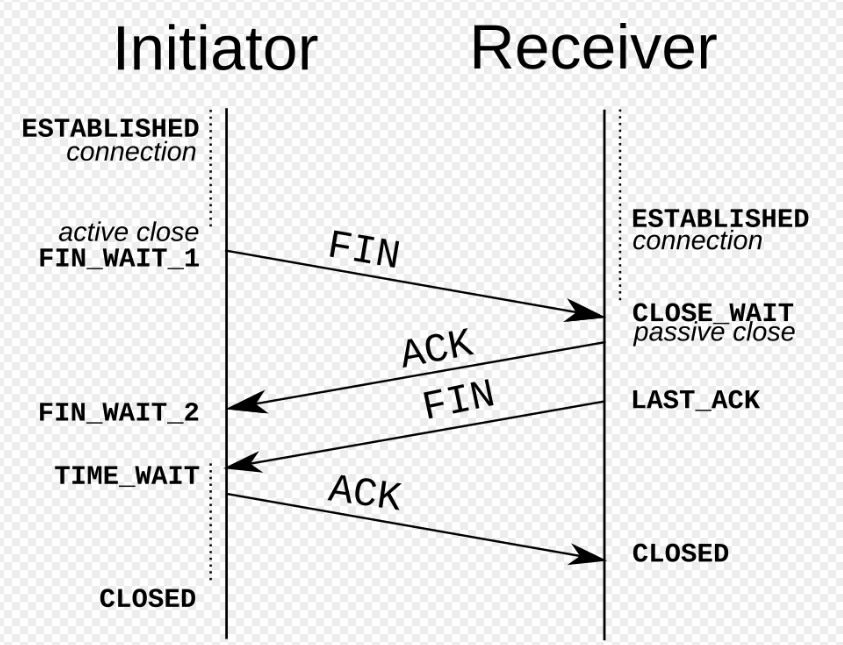

Explicit termination

Path failure elevated to connection abort

The following conditions convert prolonged network disruption into connection termination:

IP datagram loss          -> retransmission; connection usually retained
Sustained non-ACK         -> RTO give-up or keepalive failure -> abort
Peer FIN / RST            -> orderly close or abort

Application-visible consequences

After abort or close completes, further I/O on the socket fails. Data that was buffered locally and never acknowledged is not reliable delivery. A subsequent connect() establishes a new TCP connection with new sequence-number state; it does not resume the prior session. Application protocols layered on TCP (HTTP, WebSocket, MQTT, Redis RESP, and others) must reconnect and re-establish their own session semantics.

Endpoint A  <--- TCP connection --->  Endpoint B
                      |
            path unusable beyond retry/keepalive budget
                      |
            local abort (or RST received)
                      |
            application I/O error; new handshake required for recovery

Parameters that govern detection latency

Defaults below are the common Linux values (sysctl / tcp(7)). Other operating systems use different names and defaults.

Per-socket override (example: Redis). Redis tcp-keepalive (default 300 in redis.conf) calls anetKeepAlive, which enables SO_KEEPALIVE and sets TCP_KEEPIDLE = 300, TCP_KEEPINTVL = 100 (interval/3), TCP_KEEPCNT = 3 on that fd—explicitly replacing the 7200 s system idle default for Redis client connections. Detection on those sockets is therefore on the order of a few minutes, not two hours. The anet.c comment notes that the OS defaults are otherwise too long to be useful.

| NAT / load-balancer idle timeout | Implementation-defined (often 30 s–5 min for TCP; highly variable) | Mapping removed while the application is idle; the next send fails or receives RST. Frequently shorter than Linux keepalive defaults, so middleboxes often fail the path before kernel keepalive does. | | Application-level heartbeat | None in TCP; set by the protocol or client library | Detects failure on the order of the heartbeat interval (seconds to tens of seconds is common), independent of kernel keepalive. |

Keepalive probes are sent only when the socket option is enabled; many applications never enable SO_KEEPALIVE and instead rely on their own heartbeat or on the next write hitting retransmission give-up (tcp_retries2).

Conclusion. Transient network errors are absorbed by retransmission. Connection drop results from sustained non-acknowledgement, explicit FIN/RST, or operating-system and middlebox policy—not from an individual lost packet.

WebSocket

WebSocket provides simultaneous two-way communication channel over a single TCP connection. WebSocket handshake uses the HTTP Upgrade header to change from the HTTP protocol to the WebSocket protocol.

Opening handshake

Example Request

GET /chat HTTP/1.1
Host: server.example.com
Upgrade: websocket
Connection: Upgrade
Sec-WebSocket-Key: x3JJHMbDL1EzLkh9GBhXDw==
Sec-WebSocket-Protocol: chat, superchat
Sec-WebSocket-Version: 13
Origin: http://example.com

Example Response

HTTP/1.1 101 Switching Protocols
Upgrade: websocket
Connection: Upgrade
Sec-WebSocket-Accept: HSmrc0sMlYUkAGmm5OPpG2HaGWk=
Sec-WebSocket-Protocol: chat

Frame-based message

Client and Server can send data messages(text or binary) and control messages(close, ping, pong) to each other. A message is composed of one or more frames.

Fragmentation allows a message to be split into two or more frames. It enables sending messages with initial data available but complete length unknown. Without fragmentation, the whole message must be sent in one frame, so the complete length is needed before the first byte can be sent, which requires a buffer.

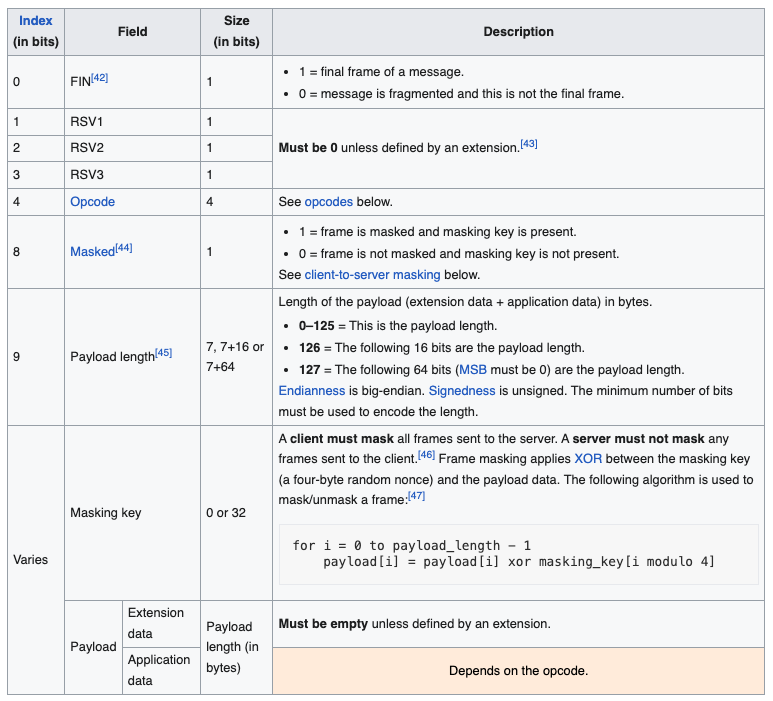

Frame Structure

Unfragmented message FIN = 1 and opcode $\neq$ 0 fragmented message

1. first frame FIN = 0 and opcode $\neq$ 0
2. zero or more frames FIN = 0 and opcode = 0
3. final frame FIN = 1 and opcode = 0

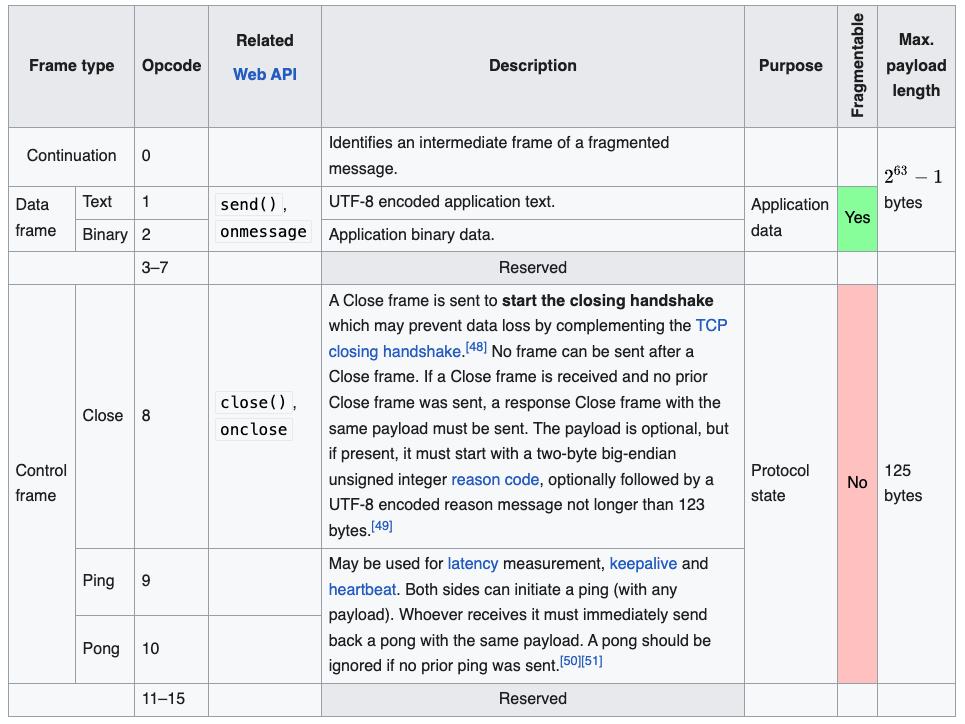

Opcodes

TLS

Transport Layer Security is a cryptographic protocol designed to provide communications security over a computer network. TLS works as upgrade and substitution of SSL.

MQTT

MQTT is a lightweight, publish-subscribe, machine to machine network protocol. originally developed by IBM to monitor oil pipelines.

Data representation

• Bits
• Two Byte Integer
